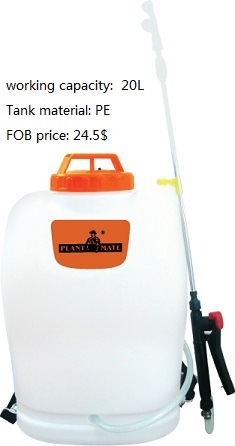

Hx-20d Intelligent Electrical Speed Control Sprayer

Quantity:
Inquire Add to Basket

  • L/C, T/T

  • HX-20D

  • Internal Threaded Connection

  • Medicine, Disinfector

  • Sector

  • >500ml

  • Electric

Product Description
Model : HX-20D
Working Capacity : 20L
Tank Material: PE
Dimension : 350*210*530 ( mm )
Net Weight: 10 ( kg )
speed: 2800 ( r/min )
Suitable Object: Grass, fruit trees, tea, vegetables, roadside hedge, other
V oltage : AC110-220V,50HZ
Motor Power : 12V35
Current : 1.4-2.0A
Battery Capacity: 12V:12AH/14AH
Flow : Single sprinkler 1.5L
Working Time: 1Hour ( 8AH ) / 1.5 Hour ( 14AH) ) (Single sprinkler), double sprinklers will work longer

Installation and Usage:
1. First, assemble sprayer spare parts acoording to sketch, then close power supply switch and finally charge 8 - 10hours before use.
2.Open the tank top( Don ' t take out the filter), and then pour the needed liquid into the tank. After pouring, t ighten tank lid. Then startup to check if there any abnormal situation. Check it out and do spraying
3. If find no liquid, low pressure, pipe jammed, leak etc..phenomenon during spraying, switch off power timely, and add liquid or eliminate trouble, then continue to sprayiny.
4. Switch off power when doing charge or after using, to prevent battery from discharge or open handle switch by mistake.
